bazz.200
The bazz.200 has the advantages of the bazz.150; is very easy to move and available with 4, 6 or 8 spray heads.

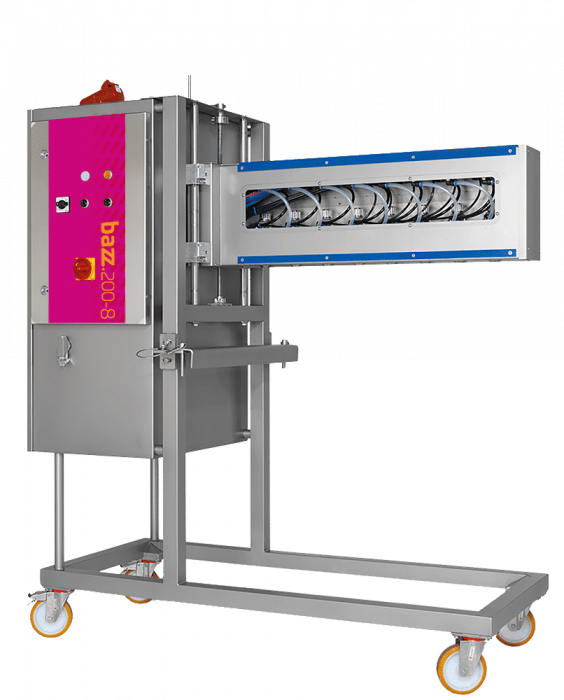

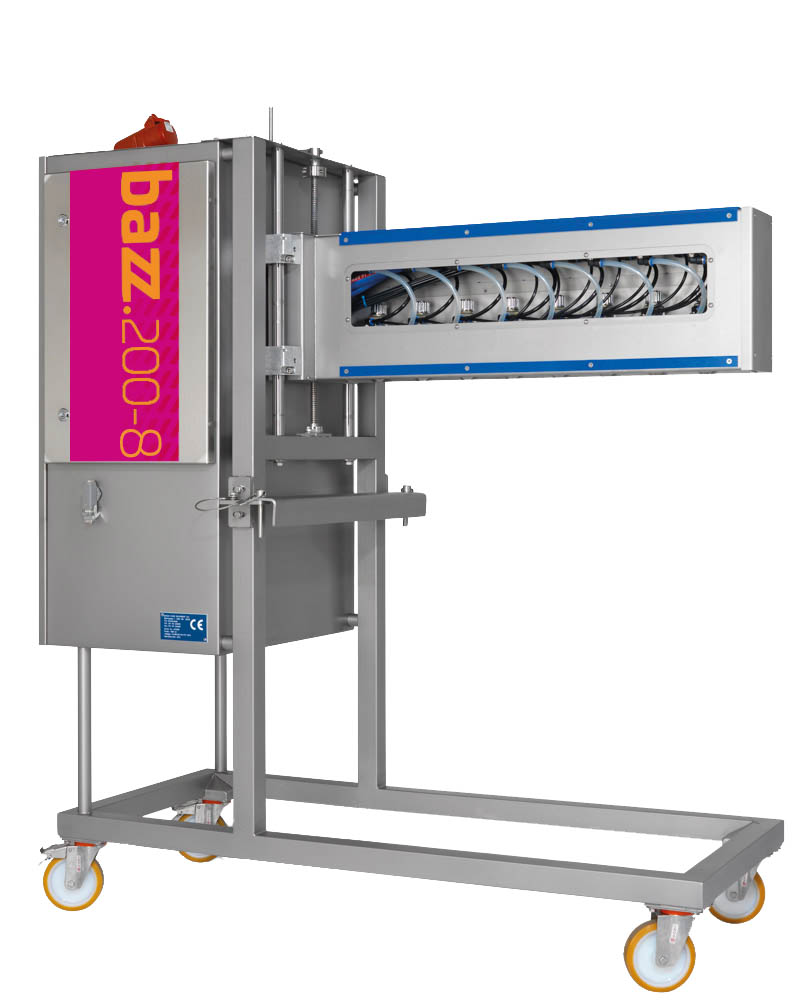

The base of the bazz.200 is a movable stainless steel C-frame, which can easily be placed above an existing conveyor.
The cabinet is equipped with the operating panel and provides space for the liquid container.
Available with spray hood with 4, 6 or 8 spray heads.
Product: depanning oil
Adjustable spray gun
1 of 2Control panel for air and liquid pressure
2 of 2Key features
- Perfect spray because of the unique spray guns and nozzles.
- Substantial reduction of depanning oil because of efficient spray.
- Amount of spray heads: 4 - 6 - 8
- In height adjustable spray hood.
- Exhaust unit with microfilter (option)
Operation
Baking trays , pans or moulds placed on the conveyor belt will be transported under the spray hood, which helds 4, 6 or 8 spray heads.
The spray hood is adjustable in height to obtain the best spraying results.
An exhaust unit with microfilter (option) can be sprayed over the spray hood to suck up excessive spray mist.
It is easy to integrate the bazz.200 into a production line.
Specifications
Air pressure: 90 PSI / 6 bar
Voltage: 3 x 400 VAC + Neutral + Ground, 50 HZ
